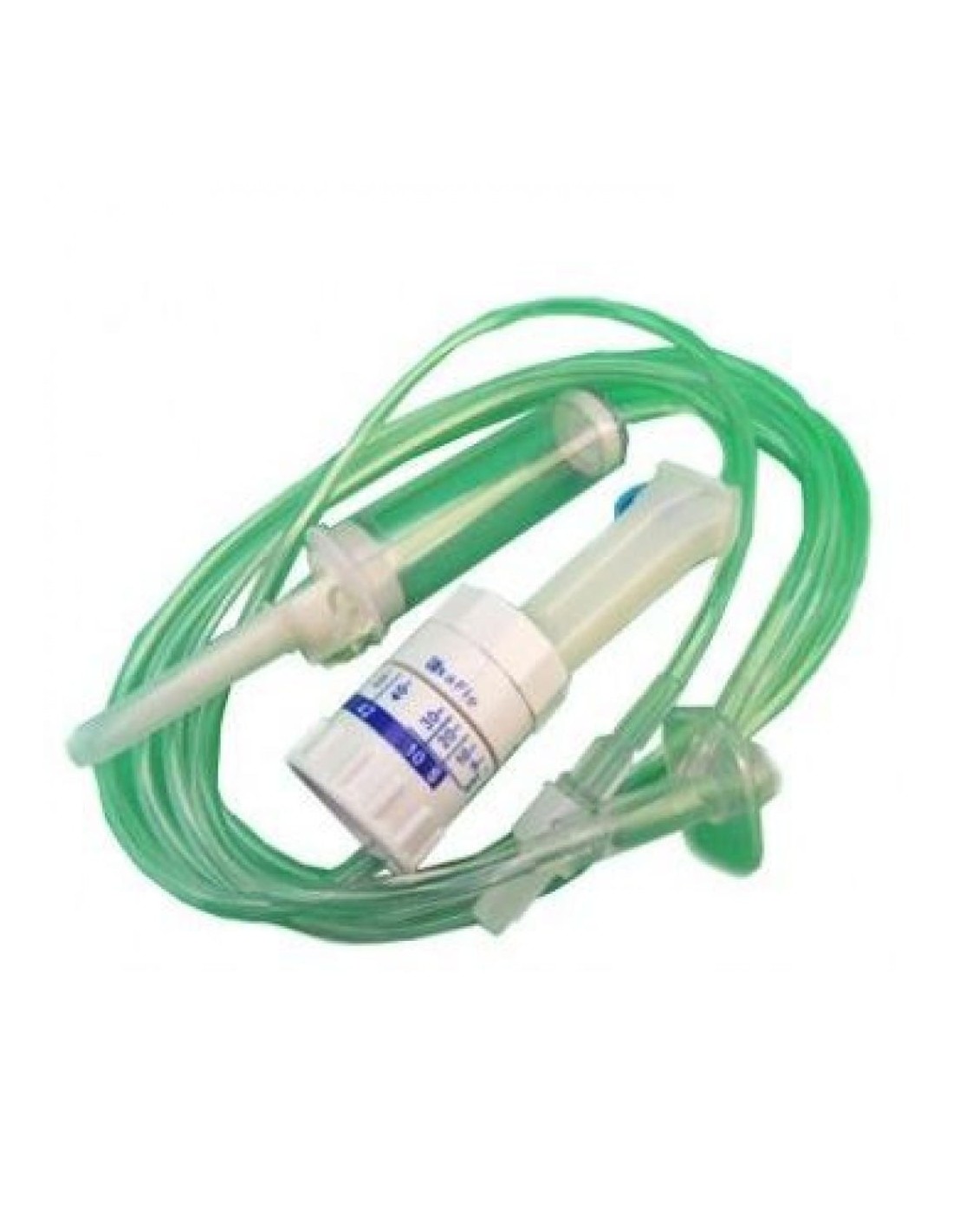

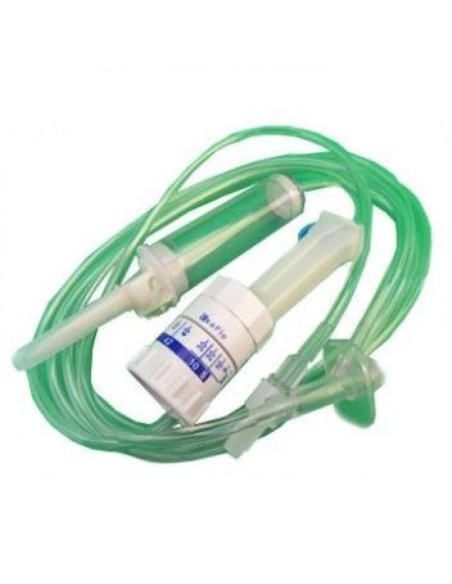

IV administration set with flow regulator Gravity IV administration set with flow regulator and spike.
Intended for high-precision administration of infusion solutions (excluding administration of plasma and its derivatives).
The double scale allows use with solutions of different viscosity.
Solutions with viscosity lower than or equal to that of 10% glucose solutions: scale 5-10-20-30-42-50-62-75-83-104-125-150-167-200-210-250.
Solutions with viscosity lower than or equal to that of 40% glucose solutions: scale 5-10-20-42-62-83-104-125-167-200.
Maximum pressure: 0.5 bar (7 psi), flow tolerance: 5-20 ml/h 30%, 20-40 ml/h 20%, 40-250 ml/h 15%; flow stability: maximum variation 5% in 24 hours, compatible with conventional pharmaceutical products, ETO (ethylene oxide) sterilised, pyrogen-free, single-use device, not to be resterilised.
With capped PVC spike, cap with water-repellent antibacterial filter, drip chamber with 15 µm solution filter, PVC tubing total length: 190 mm, Y-connector with latex-free injection site and finger guard, multi-pierceable infusion site.
